Description
Get Amplified with the ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed GDDR6 memory, the ZOTAC GAMING GeForce RTX 3060 Twin Edge OC gives rise to amplified gaming with high fidelity.
Features: – 2nd Gen Ray Tracing Cores – 3rd Gen Tensor Cores – IceStorm 2.0 Advanced Cooling – Active Fan Control with FREEZE Fan Stop – Metal Backplate – FireStorm Utility – VR Ready
Model
| Brand |
ZOTAC |
| Series |
Twin Edge OC |
| Model |
ZT-A3060 |
Interface
| Interface |
PCI Express 4.0 x16 |
Chipset
| Chipset Manufacturer |
NVIDIA |
| GPU Series |
NVIDIA GeForce RTX 30 Series |
| GPU |
GeForce RTX 3060 |
| Boost Clock |
1807 MHz |
| CUDA Cores |
3584 |
Memory
| Effective Memory Clock |
15 Gbps |
| Memory Interface |
192-Bit |
| Memory Type |
GDDR6 |
3D API
| DirectX |
DirectX 12 Ultimate |
| OpenGL |
OpenGL 4.6 |

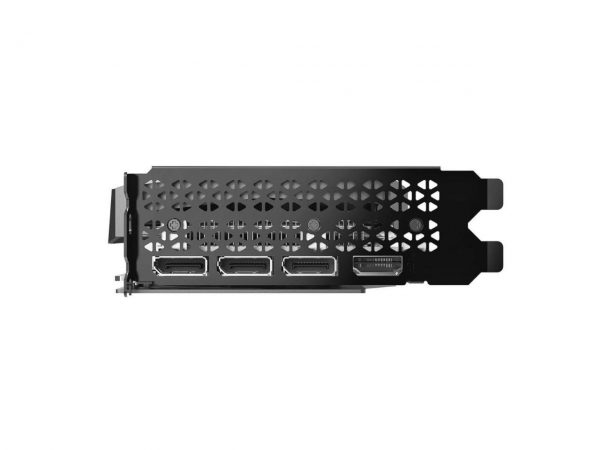

Ports
| Multi-Monitor Support |
4 |

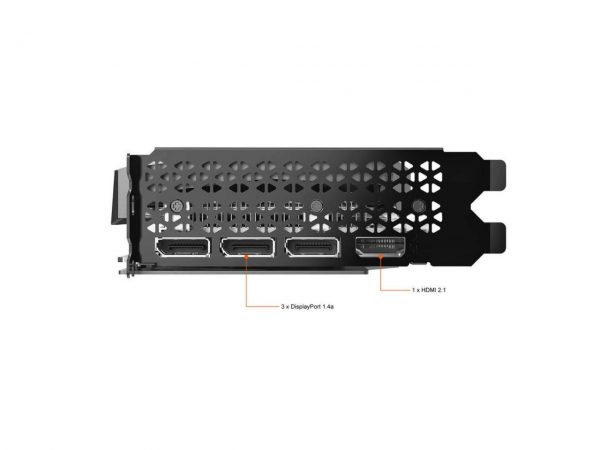

| HDMI |
1 x HDMI 2.1 |
| DisplayPort |
3 x DisplayPort 1.4a |
Details
| Max Resolution |
7680 x 4320 |
| SLI Support |
No |
| Virtual Reality Ready |
Yes |
| Thermal Design Power |
170W |
| System Requirements |
Recommended Power Supply: 600W |
| Power Connector |
1 x 8-Pin |
| HDCP Ready |
2.3 |
Form Factor & Dimensions
| Max GPU Length |
224 mm |

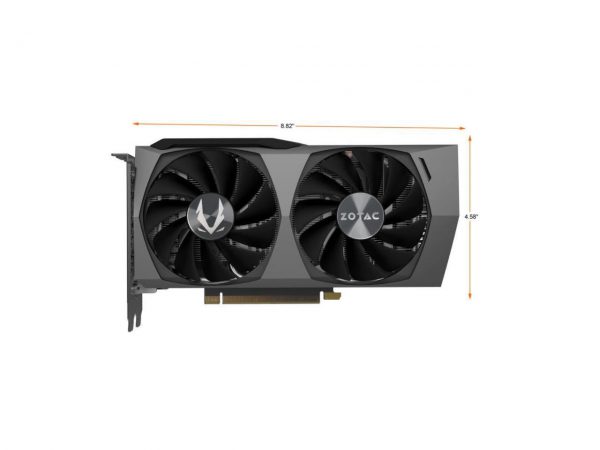

| Card Dimensions (L x H) |
8.82″ x 4.58″ |
| Slot Width |
Dual Slot |
Packaging
| Package Contents |
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC graphics card User Manual
|
